Sited in North China, Zhonghua is a leading manufacturer of steel palisade, palisade fence, palisade gate and series fencing products. Offering a full line of standard and custom made fence products that have been tested, approved and accepted as meeting established Chinese and international standards

NEWBART PRODUCTS YOUR ID SOLUTION COMPANY

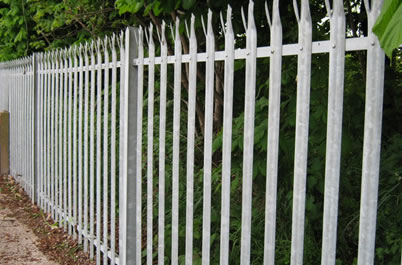

Palisade Fencing

The forbidding appearance and inherent strength of the pales provide an effective deterrent to would be intruders. It is available in a choice of head styles, both in the traditional 'D' pale profile, and 'W' section pale for added security.
Palisade is offered in a range of heights up to 3.6 metres, and is self-adjusting to slopes of up to 1 in 3. It can be supplied assembled in panels, or bundled for site assembly along with either bolts or rivets. Palisade is available in a range of finishes, galvanised in, or galvanised and colour coated in various colours to blend with the environment.
A fish plate passes through a slot in the post and secures the horizontal rail captive in its position. The pales are connected to the horizontals to form the panel and are held securely together by utilising vandal resistant security fasteners.
Fencing is supplied in 2.75m wide standard panels for easy assembly on site. Special panels and posts to step or rake can be supplied if required. Non standard posts for cranking over walls, or base plated for fixing to concrete are also available.



Steel Palisade - Specifications

we offer a range of standard specifications as listed below that should fulfill the needs of most sites, but these can be altered to become site specific as required.

Height

Post Dimensions

Rail Dimensions

Support Legs

Corrugated Steel Palisades

1.2m

102x44 or 100x55

40x40x6mm

1

W - 2.0mm or D - 3.0mm

1.5m

102x44 or 100x55

40x40x6mm

1

W - 2.0mm or D - 3.0mm

1.8m

102x44 or 100x55

40x40x6mm

1

W - 2.0mm or D - 3.0mm

2.0m

102x44 or 100x55

45x45x6mm

1

W - 2.0mm or D - 3.0mm

2.1m

102x44 or 100x55

45x45x6mm

1

W - 2.0mm or D - 3.0mm

2.4m

102x44 or 100x55

45x45x6mm

1

W - 2.0mm or D - 3.0mm

2.7m

102x44 or 100x55

50x50x6mm

1

W - 2.0mm or D - 3.0mm

3.0m

127x76

50x50x6mm

2

W - 2.5mm or D - 3.5mm

3.6m

127x76

50x50x6mm

2

W - 2.5mm or D - 3.5mm
